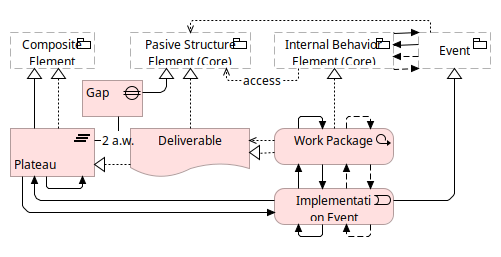

Figure 106: Implementation and Migration Metamodel

Figure 106: Implementation and Migration Metamodel ()


Work Package
Deliverable
Implementation Event
Plateau
Gap
Composite Element
Event
Internal Behavior Element (Core)
Pasive Structure Element (Core)


	Work Package	Deliverable
	Work Package	Deliverable
	Work Package	Internal Behavior Element (Core)
	Work Package	Implementation Event
	Work Package	Implementation Event
	Work Package	Work Package
	Work Package	Work Package
	Deliverable	Pasive Structure Element (Core)
	Deliverable	Plateau
	Implementation Event	Work Package
	Implementation Event	Work Package
	Implementation Event	Event
	Implementation Event	Plateau
	Implementation Event	Implementation Event
	Implementation Event	Implementation Event
	Plateau	Composite Element
	Plateau	Plateau
	Plateau	Composite Element
	Plateau	Implementation Event
2 a.w.	Gap	Plateau
	Gap	Pasive Structure Element (Core)
	Event	Internal Behavior Element (Core)
	Event	Internal Behavior Element (Core)
	Event	Pasive Structure Element (Core)
	Internal Behavior Element (Core)	Event
	Internal Behavior Element (Core)	Event
access	Internal Behavior Element (Core)	Pasive Structure Element (Core)
