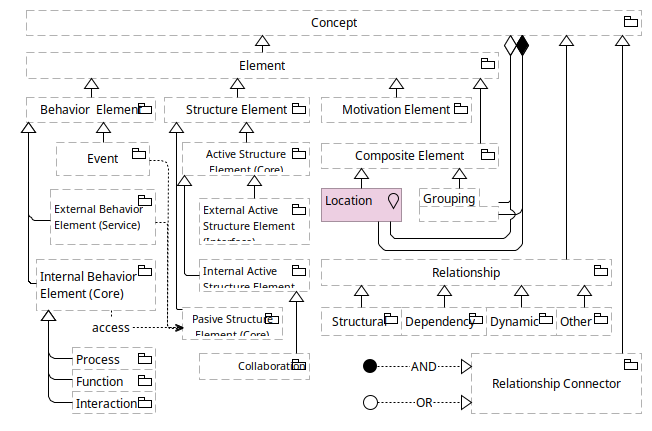

Figure 1,4,12,18, 21: Top-Level Hierarchy of ArchiMate Concepts, Behavior and Structure Hierarchy, Specializations of Core Elements, Composite, Relationships

Figure 1,4,12,18, 21: Top-Level Hierarchy of ArchiMate Concepts, Behavior and Structure Hierarchy, Specializations of Core Elements, Composite, Relationships ()


Element
Relationship
Behavior Element
Structure Element
Active Structure Element (Core)
External Active Structure Element (Interface)
Internal Active Structure Element
Pasive Structure Element (Core)
External Behavior Element (Service)
Internal Behavior Element (Core)
Event
Process
Function
Interaction
Collaboration
Composite Element
Location
Grouping
Concept
Motivation Element
Structural
Dependency
Dynamic
Other
Relationship Connector
Junction AND
Junction OR


	Element	Concept
	Relationship	Concept
	Behavior Element	Element
	Structure Element	Element
	Active Structure Element (Core)	Structure Element
	External Active Structure Element (Interface)	Active Structure Element (Core)
	Internal Active Structure Element	Active Structure Element (Core)
	Pasive Structure Element (Core)	Structure Element
	External Behavior Element (Service)	Pasive Structure Element (Core)
	External Behavior Element (Service)	Behavior Element
access	Internal Behavior Element (Core)	Pasive Structure Element (Core)
	Internal Behavior Element (Core)	Behavior Element
	Event	Behavior Element
	Event	Pasive Structure Element (Core)
	Process	Internal Behavior Element (Core)
	Function	Internal Behavior Element (Core)
	Interaction	Internal Behavior Element (Core)
	Collaboration	Internal Active Structure Element
	Composite Element	Element
	Location	Composite Element
	Grouping	Composite Element
	Concept	Grouping
	Concept	Location
	Concept	Location
	Concept	Grouping
	Motivation Element	Element
	Structural	Relationship
	Dependency	Relationship
	Dynamic	Relationship
	Other	Relationship
	Relationship Connector	Concept
AND	Junction AND	Relationship Connector
OR	Junction OR	Relationship Connector
